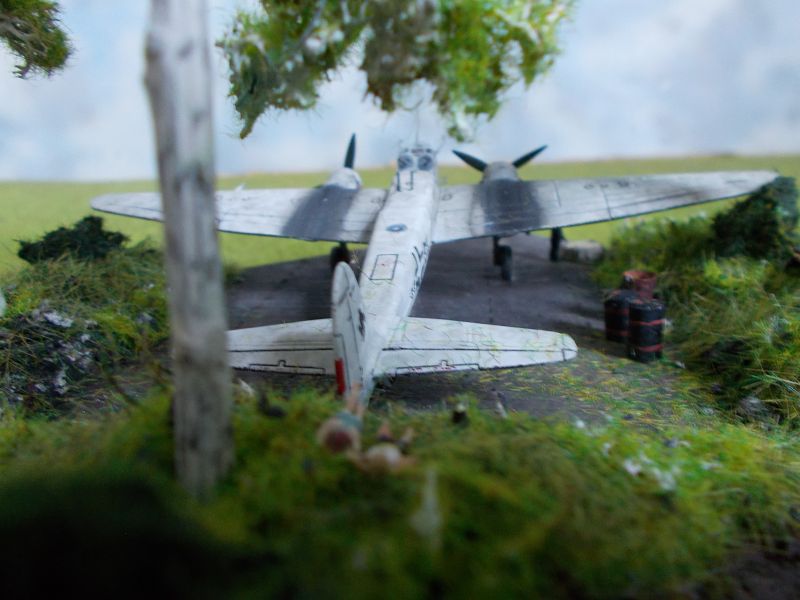

Junkers Ju 88 G-6 Nachtjäger vom 1.NJG 3 - F-Toys 1/144

Ich lege großen Wert auf die Feststellung, daß die Symbole der NS-Zeit ( Swastikas ) lediglich einer originalgetreuen Wiedergabe und Darstellung der Modelle dienen. Eine politische Einstellung / Gesinnung kann und sollte nicht davon abgeleitet werden !

Den allgemein geltenden Gesetzen und Richtlinien, die zwar eine Ausstellung von NS-Symbolen erlaubt, aber eine Verherrlichung verbietet, wird somit entsprochen !


 I attach great importance to the statement that the symbols of the Nazi period ( Swastikas ) serve only a faithful reproduction of the models. A political attitude can and should not be derived from it. The generally applicable laws and regulations, which allow an exhibition of Nazi symbols, will therefore be satisfied.

All previous night fighter versions of the Ju 88 used a modified A-series fuselage. The G-series fuselage was purpose-built for the special needs of a night fighter, with the A-series' Bola ventral under-nose defensive gun position omitted for lower aerodynamic drag and less weight, and adding the enlarged squared-off vertical fin/rudder tail unit of the Ju 188. G-1 aircraft possessed more powerful armament and like the earlier R-1, used a pair of 1,700 PS BMW 801 radial engines, the G-1 using the later BMW 801G-2 version. Electronic equipment consisted of the then-standard FuG 220 Lichtenstein SN-2 90 MHz VHF radar using eight-dipole Hirschgeweih antennas, which could include fitment of the borderline-SHF-band FuG 350 Naxos radar detector with its receiving antenna housed in a teardrop-shaped streamlined fairing above the canopy, or FuG 227 Flensburg radar detector homing devices that had their own trio of twin-dipole antennae: one on each wing leading edge and one under the tail. One Ju 88G-1 of 7. Staffel/NJG 2 was flown by mistake to RAF Woodbridge in July 1944, giving the Royal Air Force its first chance to check out the VHF-band Lichtenstein SN-2 radar and Flensburg radar detector gear.





G-6 versions were equipped with 1,750 PS Jumo 213A inline-V12 engines (using the same redesigned annular radiator cores as the Ju 188s powered by them), enlarged fuel tanks and often one or two 20 mm MG 151/20 cannons in a Schräge Musik ("Jazz Music", i.e. slanted) installation. These guns were pointed obliquely upwards and forwards from the upper fuselage - usually at an angle of 70°. Some of the final G-series models received updates to the engines, using a pair of high-altitude Jumo 213E inverted V-12s with the same revised annular radiator design as the 213As already used, or to the radar, using the mid-VHF band FuG 218 Neptun AI radar with either the standardized Hirschgeweih aerials with shorter dipoles to suit the higher frequencies used, or more rarely the advanced Morgenstern 90º crossed-element, six-dipole Yagi-form antenna. Only a very few Ju 88G-6 night fighters were ever fitted with the semi-experimental FuG 240 Berlin N-1 cavity magnetron based, 3 GHz-band (centimetric) radar, whose dish antenna was housed in a smoothly contoured radome on the G-6's nose. Only about 15 of the Berlin systems were completed before V-E Day.
Many Luftwaffe night fighter aces, such as Helmut Lent (110 victories) and Heinrich von und zu Sayn-Wittgenstein (87 victories) flew Ju 88s during their careers.
The Imperial Japanese Navy ordered the specifications of an anti-submarine patrol/escort fleet aircraft, based on a medium bomber. Kyūshū closely patterned the Kyūshū Q1W Tokai ("Eastern Sea", Allied codename "Lorna") antisubmarine patrol/fleet escort aircraft after the Ju 88.

From Wikipedia, the free encyclopedia Junkers Ju 88
